How to Run an Avail node

How to run an Avail node

There are four main ways of running an Avail node:

  1. By running a pre-built binary.
  2. By building from source
  3. By running a pre-built image using Docker

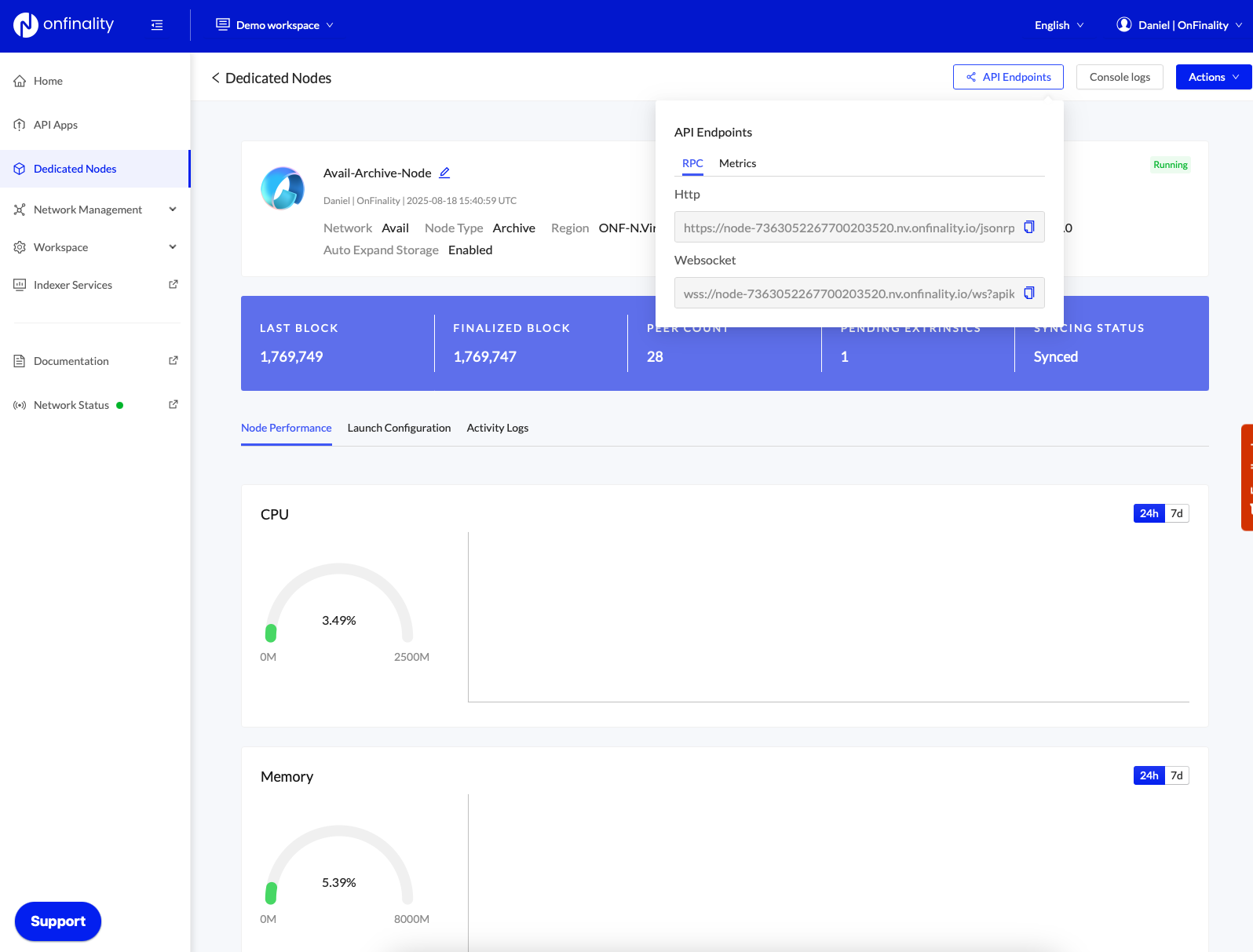

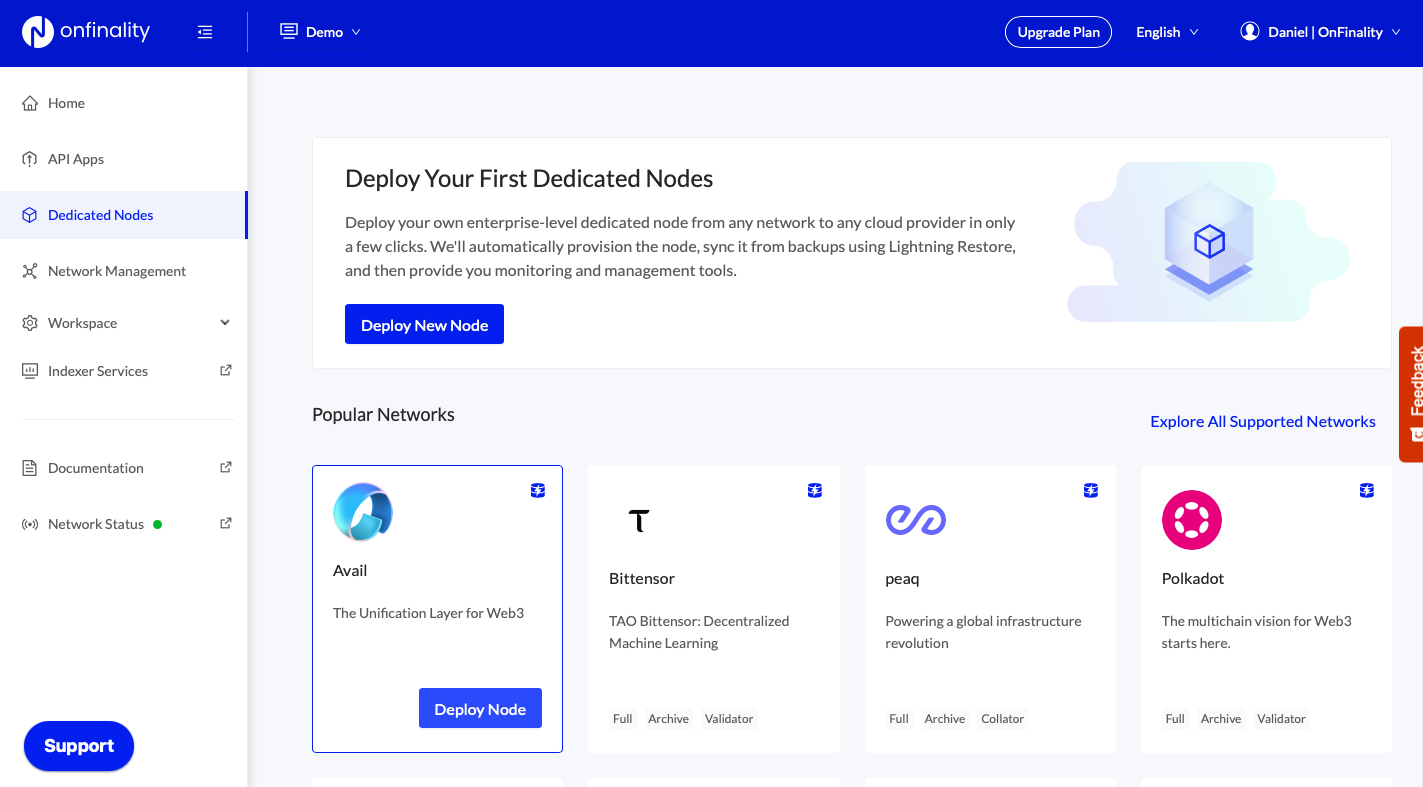

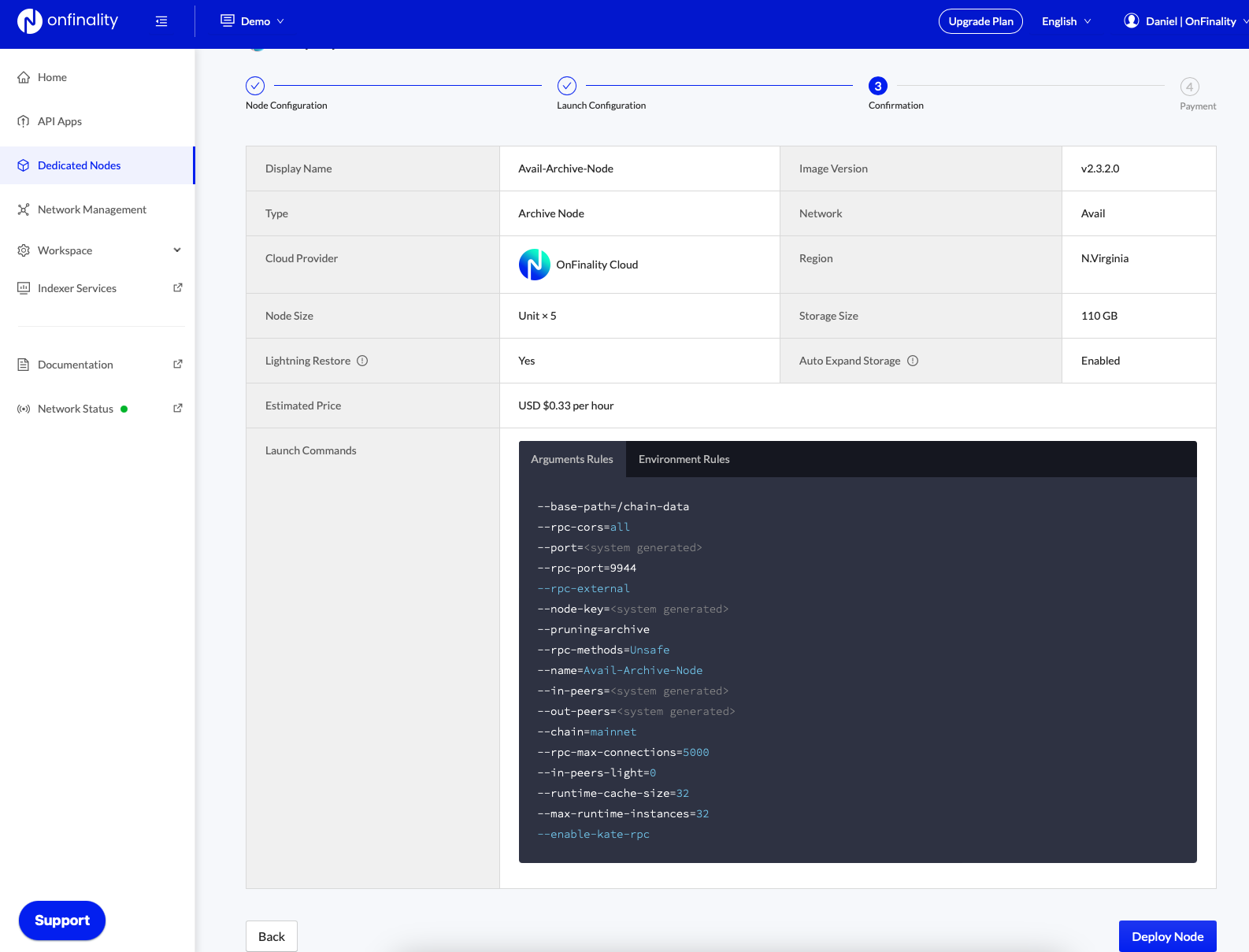

  4. By assisted deployment with an infrastructure provider

LOOKING TO BE AN RPC PROVIDER?

We welcome all community members who are looking to run an RPC node on Avail. While the exact config of your node will depend on your unique requirements, the following flags are required to make sure your node can be used to access all RPC methods:

avail-node flags
--state-pruning archive
--blocks-pruning archive
--rpc-methods Safe
--rpc-cors all
--unsafe-rpc-external
--enable-kate-rpc

Description of the flags:

  • β€”state-pruning archive:

    Specify the state pruning mode. This mode specifies when the block’s state (ie, storage) should be pruned (ie, removed) from the database. This setting can only be set on the first creation of the database. Every subsequent run will load the pruning mode from the database and will error if the stored mode doesn’t match this CLI value. It is fine to drop this CLI flag for subsequent runs. Possible values: - archive: Keep the state of all blocks. - archive-canonical: Keep only the state of finalized blocks. - number Keep the state of the last number of finalized blocks. [default: 256]

  • β€”blocks-pruning archive:

    Specify the blocks pruning mode. This mode specifies when the block’s body (including justifications) should be pruned (ie, removed) from the database. Possible values: - archive: Keep all blocks. - archive-canonical: Keep only finalized blocks. - number Keep the last number of finalized blocks.

  • β€”rpc-methods Safe:

    RPC methods to expose. [default: auto]
    Possible values:

    • auto: Expose every RPC method only when RPC is listening on localhost, otherwise serve only safe RPC methods
    • safe: Allow only a safe subset of RPC methods
    • unsafe: Expose every RPC method (even potentially unsafe ones)

  • β€”rpc-cors all:

    Specify browser origins allowed to access the HTTP & WS RPC servers. A comma-separated list of origins (protocol://domain or special null value). Value of all will disable origin validation.

  • β€”unsafe-rpc-external:

    Listen to all RPC interfaces.

  • β€”enable-kate-rpc:

    Enable the Kate pallet.

  1. Go to the Avail node GitHub releases pageΒ . There you will see a lot of pre-built binaries for each version of the Avail node.

  2. Please download the binary suitable from your system, of the latest version. You can do this using the GUI or by running the following command in your terminal:

curl -L -O https://github.com/availproject/avail/releases/download/<LATEST-AVAIL-NODE-VERSION>/<YOUR-SYSTEM-SPECIFIC-BINARY>.tar.gz
  1. Extract the downloaded file by opening a terminal in the location of the downloaded file and using the following command:
tar -xzvf <YOUR-SYSTEM-SPECIFIC-BINARY>.tar.gz

Your terminal should now look something like this:


Extracted Avail node binary

  • The file in red is what we downloaded to our system.
  • The file in green is the extracted binary.
  1. Once extracted, you will see a pre-built, executable binary named avail-node in the same directory. You can run this binary using the following command:
./avail-node --name a-random-name --chain mainnet -d ./output
  1. Your terminal output should look something like this:
2024-04-29 07:48:22 Avail Node
2024-04-29 07:48:22 ✌️  version 2.1.1-8608dc47f00
2024-04-29 07:48:22 ❀️  by Avail Project <[email protected]g>, 2017-2024
2024-04-29 07:48:22 πŸ“‹ Chain specification: Avail Turing Network
2024-04-29 07:48:22 🏷  Node name: possible-point-3102
2024-04-29 07:48:22 πŸ‘€ Role: FULL
2024-04-29 07:48:22 πŸ’Ύ Database: ParityDb at ./output/chains/avail_turing_network/paritydb/full
2024-04-29 07:48:27 πŸ”¨ Initializing Genesis block/state (state: 0x5603…9c01, header-hash: 0xd3d2…8b70)
2024-04-29 07:48:27 πŸ‘΄ Loading GRANDPA authority set from genesis on what appears to be first startup.
2024-04-29 07:48:29 πŸ‘Ά Creating empty BABE epoch changes on what appears to be first startup.
2024-04-29 07:48:29 🏷  Local node identity is: 12D3KooWELgzaRZqsHNyUodhZZF7A1ydsRpgLsY7fojDegKni4YF
2024-04-29 07:48:29 Prometheus metrics extended with avail metrics
2024-04-29 07:48:29 πŸ’» Operating system: linux
2024-04-29 07:48:29 πŸ’» CPU architecture: x86_64
2024-04-29 07:48:29 πŸ’» Target environment: gnu
2024-04-29 07:48:29 πŸ’» CPU: DO-Premium-Intel
2024-04-29 07:48:29 πŸ’» CPU cores: 4
2024-04-29 07:48:29 πŸ’» Memory: 7937MB
2024-04-29 07:48:29 πŸ’» Kernel: 5.15.0-105-generic
2024-04-29 07:48:29 πŸ’» Linux distribution: Ubuntu 22.04.4 LTS
2024-04-29 07:48:29 πŸ’» Virtual machine: yes
2024-04-29 07:48:29 πŸ“¦ Highest known block at #0
2024-04-29 07:48:29 Running JSON-RPC server: addr=127.0.0.1:9944, allowed origins=["http://localhost:*", "http://127.0.0.1:*", "https://localhost:*", "https://127.0.0.1:*", "https://polkadot.js.org"]
2024-04-29 07:48:29 🏁 CPU score: 950.72 MiBs
2024-04-29 07:48:29 🏁 Memory score: 4.02 GiBs
2024-04-29 07:48:29 🏁 Disk score (seq. writes): 845.72 MiBs
2024-04-29 07:48:29 🏁 Disk score (rand. writes): 338.52 MiBs
2024-04-29 07:48:29 〽️ Prometheus exporter started at 127.0.0.1:9615
2024-04-29 07:48:30 πŸ” Discovered new external address for our node: /ip4/139.59.94.121/tcp/30333/ws/p2p/12D3KooWELgzaRZqsHNyUodhZZF7A1ydsRpgLsY7fojDegKni4YF
2024-04-29 07:48:34 βš™οΈ  Syncing, target=#137399 (9 peers), best: #1000 (0x9e8f…55ab), finalized #512 (0x0a9a…875a), ⬇ 316.3kiB/s ⬆ 14.2kiB/s
2024-04-29 07:48:39 βš™οΈ  Syncing 235.4 bps, target=#137399 (9 peers), best: #2177 (0x5828…e9da), finalized #2048 (0x2f65…3b2e), ⬇ 113.3kiB/s ⬆ 5.5kiB/s
2024-04-29 07:48:43 [3097] πŸ’Έ generated 8 npos targets
2024-04-29 07:48:43 [3097] πŸ’Έ generated 8 npos voters, 8 from validators and 0 nominators
2024-04-29 07:48:43 [#3097] πŸ—³  creating a snapshot with metadata SolutionOrSnapshotSize { voters: 8, targets: 8 }
2024-04-29 07:48:43 [#3097] πŸ—³  Starting phase Signed, round 1.
2024-04-29 07:48:44 [#3277] πŸ—³  Starting phase Unsigned((true, 3277)), round 1.
2024-04-29 07:48:44 [#3278] πŸ—³  queued unsigned solution with score ElectionScore { minimal_stake: 184467440819699, sum_stake: 184467440819699, sum_stake_squared: 34028236722569152873026450601 }
2024-04-29 07:48:44 βš™οΈ  Syncing 236.0 bps, target=#137400 (10 peers), best: #3357 (0x0c50…7d21), finalized #3072 (0x2803…c15b), ⬇ 244.0kiB/s ⬆ 20.2kiB/s
2024-04-29 07:48:44 [#3457] πŸ—³  Starting phase Off, round 2.
2024-04-29 07:48:44 [3457] πŸ’Έ new validator set of size 1 has been processed for era 1
2024-04-29 07:48:49 βš™οΈ  Syncing 206.2 bps, target=#137400 (10 peers), best: #4388 (0x2d3d…6b93), finalized #4177 (0x58f8…9518), ⬇ 261.5kiB/s ⬆ 11.6kiB/s
2024-04-29 07:48:54 βš™οΈ  Syncing 232.0 bps, target=#137400 (10 peers), best: #5548 (0x1aef…1c46), finalized #5120 (0x274f…e5d7), ⬇ 122.7kiB/s ⬆ 6.9kiB/s
2024-04-29 07:48:59 βš™οΈ  Syncing 118.2 bps, target=#137400 (10 peers), best: #6139 (0x9e52…af00), finalized #5632 (0x5297…a001), ⬇ 66.5kiB/s ⬆ 4.9kiB/s
2024-04-29 07:49:04 βš™οΈ  Syncing 185.7 bps, target=#137401 (10 peers), best: #7068 (0x911d…666a), finalized #6656 (0xdd79…2e5e), ⬇ 80.7kiB/s ⬆ 1.5kiB/s
2024-04-29 07:49:05 [7417] πŸ’Έ generated 9 npos targets
2024-04-29 07:49:05 [7417] πŸ’Έ generated 9 npos voters, 9 from validators and 0 nominators
2024-04-29 07:49:05 [#7417] πŸ—³  creating a snapshot with metadata SolutionOrSnapshotSize { voters: 9, targets: 9 }
2024-04-29 07:49:05 [#7417] πŸ—³  Starting phase Signed, round 2.
2024-04-29 07:49:06 [#7597] πŸ—³  Starting phase Unsigned((true, 7597)), round 2.
2024-04-29 07:49:06 [#7598] πŸ—³  queued unsigned solution with score ElectionScore { minimal_stake: 184447246591607, sum_stake: 1475577972732856, sum_stake_squared: 272166294201800640629142739592 }
2024-04-29 07:49:07 [#7777] πŸ—³  Finalized election round with compute Unsigned.
2024-04-29 07:49:07 [#7777] πŸ—³  Starting phase Off, round 3.
2024-04-29 07:49:07 [7777] πŸ’Έ new validator set of size 8 has been processed for era 2
2024-04-29 07:49:09 βš™οΈ  Syncing 206.2 bps, target=#137401 (10 peers), best: #8099 (0x559a…9c2e), finalized #7680 (0x84b6…abc0), ⬇ 103.9kiB/s ⬆ 0.9kiB/s
2024-04-29 07:49:14 βš™οΈ  Syncing 204.4 bps, target=#137401 (10 peers), best: #9121 (0xf95e…5a17), finalized #8704 (0x6e49…33cd), ⬇ 98.0kiB/s ⬆ 1.5kiB/s

Your node will also appear on the Avail Telemetry siteΒ , listed under the β€œNode name” from the node command output. Be sure to select the appropriate network tab at the top to view your node’s status.

Additional configs

The Avail node is a highly customizable piece of software. You can fetch a list of supported commands and flags using:

./avail-node --help

Alternatively, you can check out this notion pageΒ .

Please note that the notion page may not always be updated. The best way to reliably get the latest config options will be ./avail-node --help.
